Product Overview
The TDL10 Concrete Angle secures wood posts to concrete or wood floors in light-duty applications. It is constructed of 12-gauge steel with a G90 galvanizing finish.
Key Features
- Use all specified fasteners (one 1/2" anchor bolt and four 16d nails and one 1/2" bolt for strap)
- Not for use with treated lumber
- Can be embedded into concrete. Minimum embedment depth is 4" to achieve allowable loads
- Moisture barrier may be required

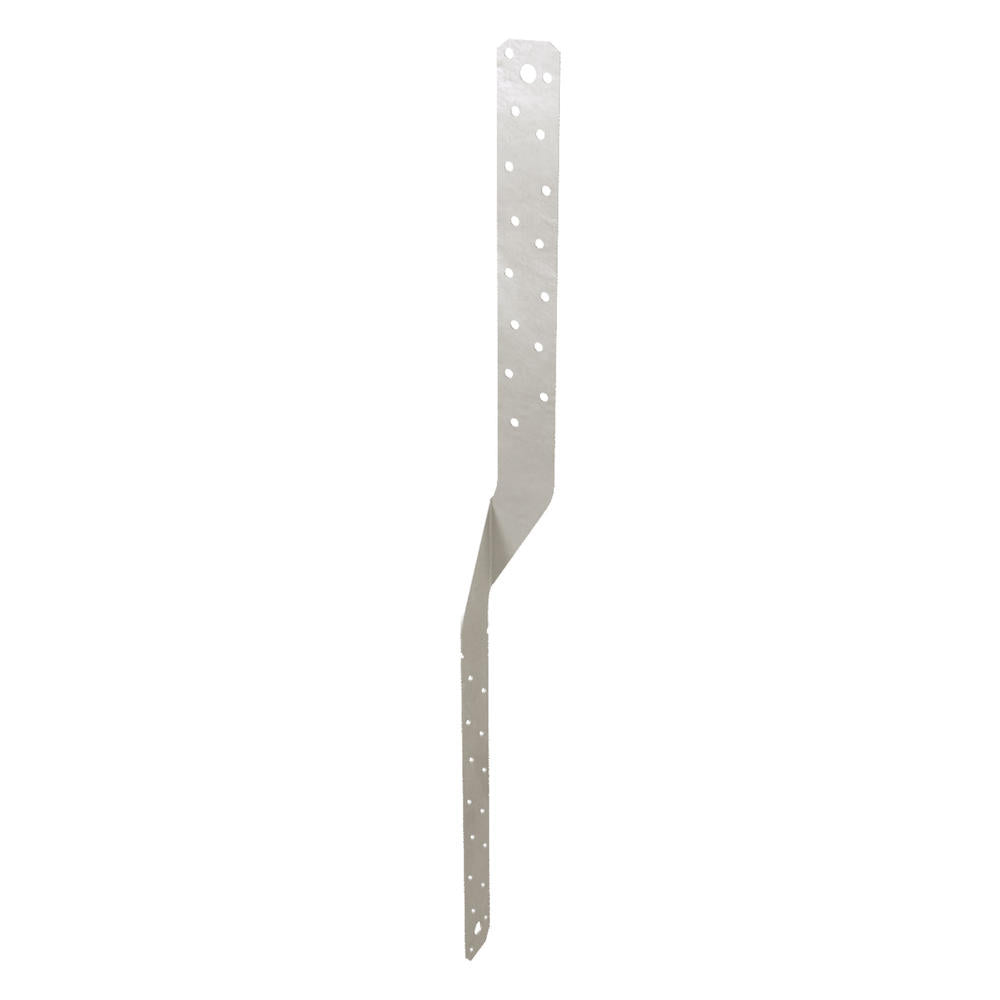

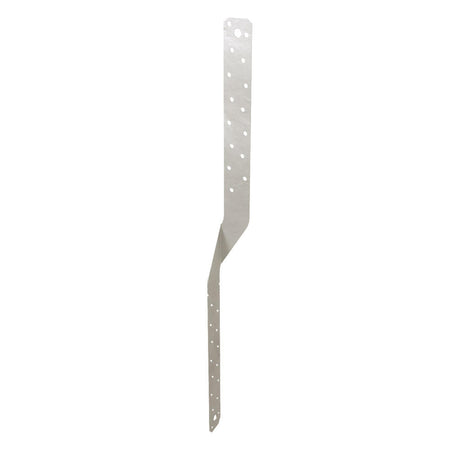

TWIST STRAP 1-1/4" x 20" 18GA 100/CTN
The LTW20 twist strap ties framing members to resist tension forces. It is light capacity and constructed of 18-gauge steel with a G90 galvanizing finish.
Features
- Use all specified fasteners - (12) 10d x 1-1/2" and (12) 10d nails
- Not for use with treated lumber
- Consult I-joist manufacturer for web stiffener requirements and uplift limitations on joist and application
Specifications
- Overall Depth: 0.044"
- Overall Height: 20"
- Overall Width: 1-1/4"
- Gauge: 18
- Material: Steel
- Finish: G90 Steel
- Series: LTW
| Name | Size |
| Concrete Angle 2" x 9-3/4" - TDL10 |
|
| Twist Strap 1-1/4" x 20" - LTW20 |
|
