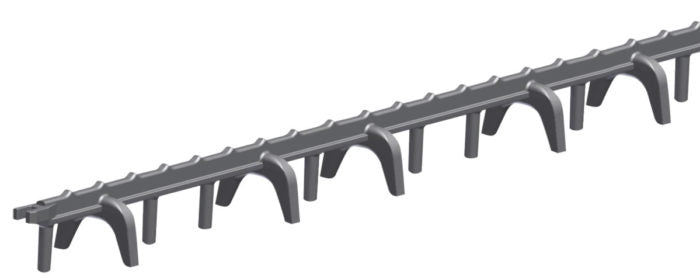

The Tuff Slab Bolster is used to provide accurate cover for lower mats of steel reinforcement in concrete elements. Suitable for a wide range of uses, the Tuff Slab Bolster can be used in Precast concrete construction, post tensioned concrete and other cast-in-place applications. The Tuff Slab Bolster – all plastic – may also be used as side form spacers in vertical formwork.
The Tuff Slab Bolster is fabricated from fiber filled gray material designed to blend with the concrete surface, if exposed. Top bar corrugations are placed on 1” centers to visually aid rebar placement. The Tuff Slab Bolster is manufactured in true 60” lengths, eliminating assembly and expedites field placement.
| Item | Height | Width | Length | Feet per Bundle | Weight per Bundle (lbs) | Feet per Pallet |
|---|---|---|---|---|---|---|
| MBTSB075 | 3/4″ | 1 3/4″ | 60″ | 100 | 7.23 | 14,400 |
| MBTSB100 | 1″ | 1 13/16″ | 60″ | 100 | 7.76 | 10,000 |
| MBTSB125 | 1 1/4″ | 1 7/8″ | 60″ | 100 | 8.9 | 9,000 |
| MBTSB150 | 1 1/2″ | 2″ | 60″ | 100 | 9.48 | 7,200 |
| MBTSB175 | 1 3/4″ | 2 1/16″ | 60″ | 100 | 9.7 | 6,400 |
| MBTSB200 | 2″ | 2 3/16″ | 60″ | 100 | 10.0 | 5,600 |
| MBTSB250 | 2 1/2″ | 2 5/16″ | 60″ | 100 | 11.4 | 5,200 |
| MBTSB300 | 3″ | 2 1/2″ | 60″ | 100 | 12.7 | 4,200 |
