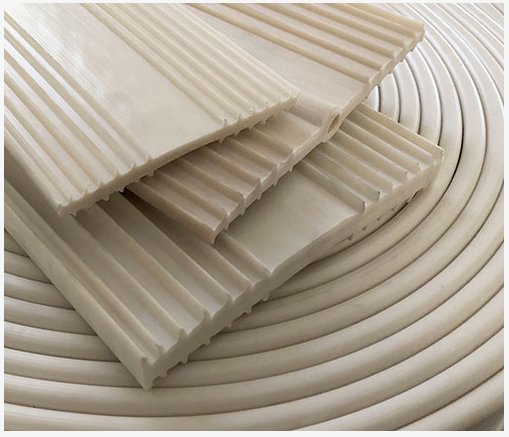

PVC Waterstops

Name: PVC Waterstops
Brand: BoMetals
SKU: PVCWS
Availability: InStock

SKU: PVCWS

$0.00

Usually available for pick-up within 5 days

PVC Waterstops Spec Sheets and Drawings

Dumbbell with Center Bulb
Ribbed Center Bulb
Split Ribbed
Tear Web
Base Seals
Dumbbell
Flat Ribbed
Multi Rib
Split Dumbbell
Retro Fit

DUMBBELL WITH CENTER BULB

Catalog#	Head Pressure	Lbs./ LF	Profile	Data Sheets

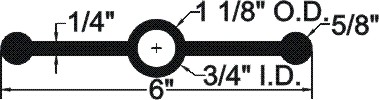

DBCB-614	100′	1.41		Spec DWG PDF
DBCB-638	100′	1.68		Spec DWG PDF
DBCB-938	150′	3.10		Spec DWG PDF
DBCB-938L	150′	3.70		Spec DWG PDF
RIBBED CENTER BULB
Catalog#	Head Pressure	Lbs./ LF	Profile	Data Sheets
RCB-4316	65′	.40		Spec DWG PDF

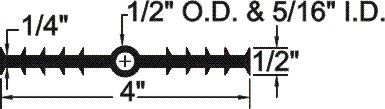

RCB-4316CA	65′	.50		Spec DWG PDF

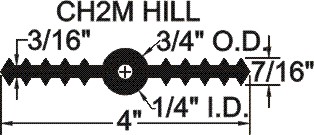

RCB-4316LB	65′	.74		Spec DWG PDF

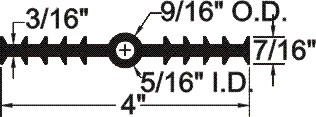

RCB-4316NT	65′	.60		Spec DWG PDF
RCB-6316	100′	.73		Spec DWG PDF
RCB-6316NT	100′	.86		Spec DWG PDF
RCB-6316T	100′	.68		Spec DWG PDF

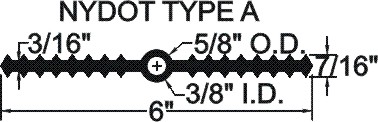

RCB-6316A	100′	.92		Spec DWG PDF
RCB-612	150′	1.90		Spec DWG PDF
RCB-614	100′	.98		Spec DWG PDF
RCB-638	125′	1.16		Spec DWG PDF

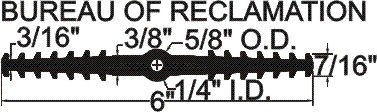

RCB-638BR	125′	1.19		Spec DWG PDF

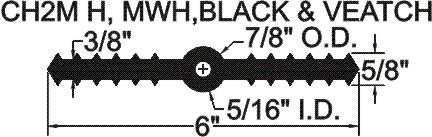

RCB-638LB	125′	1.63		Spec DWG PDF
RCB-638NT	125′	1.55		Spec DWG PDF

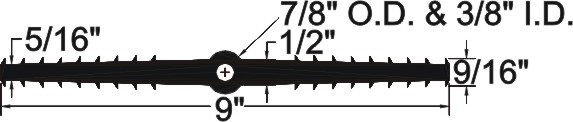

RCB-912	200′	2.42		Spec DWG PDF
RCB-9316	100′	1.20		Spec DWG PDF
RCB-938	175′	1.76		Spec DWG PDF
RCB-938BR	175′	2.65		Spec DWG PDF

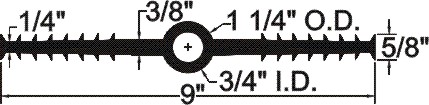

RCB-938LB	175′	2.25		Spec DWG PDF
RCB-938NT	175′	2.45		Spec DWG PDF
RCB-938VLB	150′	2.73		Spec DWG PDF
RCB-1212	225′	4.32		Spec DWG PDF
RCB-1212T	225′	3.60		Spec DWG PDF
RCB-12316	150′	1.56		Spec DWG PDF
Split Ribbed
Catalog#	Head Pressure	Lbs./ LF	Profile	Data Sheets

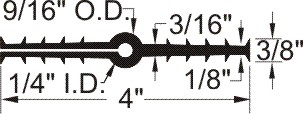

SR-4316	65′	.52		Spec DWG PDF
SR-6316	100′	.75		Spec DWG PDF
SR-638	125′	1.54		Spec DWG PDF
SR-938	150′	2.04		Spec DWG PDF
SR-1212	200′	3.18		Spec DWG PDF
Tear Web
Catalog#	Head Pressure	Lbs./ LF	Profile	Data Sheets
CTW1-2	35′	1.10		Spec DWG PDF
TW-618	65′	.78		Spec DWG PDF
TW-918	100′	1.00		Spec DWG PDF

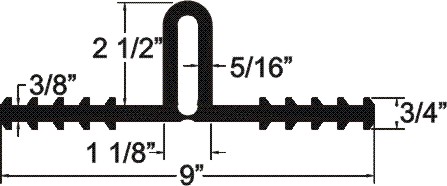

TW-938	150′	3.78		Spec DWG PDF
Base Seals
Catalog#	Head Pressure	Lbs./ LF	Profile	Data Sheets
BS-618	100′	.89		Spec DWG PDF
BS-618CI	100′	1.07		Spec

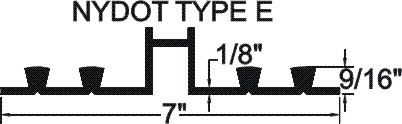

BS-718E	100′	1.16		Spec DWG PDF
BS-72518	75′	.88		Spec DWG PDF

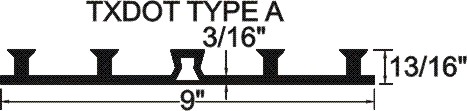

BS-9316	100′	1.72		Spec DWG PDF
BS-9532	100′	1.53		Spec DWG PDF

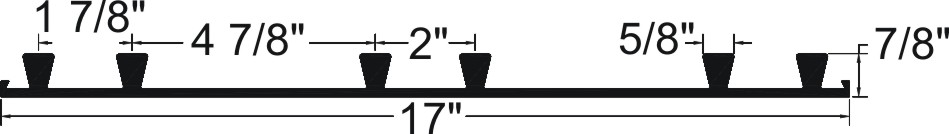

BS-17532	N/A	2.75		Spec DWG PDF
CU-912	N/A	4.53		Spec DWG PDF
Dumbbell
Catalog#	Head Pressure	Lbs./ LF	Profile	Data Sheets
DB-4316	.65	.49			Spec DWG PDF
DB-6316	75′	.71		Spec DWG PDF
DB-6316LB	75′	.93		Spec DWG PDF
DB-614	100′	1.11		Spec DWG PDF
DB-638	125′	1.59		Spec DWG PDF
DB-9316	100′	1.17		Spec DWG PDF
DB-938	150′	2.17		Spec DWG PDF
DB-938LB	150′	2.55		Spec DWG PDF
DB-1238	200′	2.99		Spec DWG PDF
Flat Ribbed
Catalog#	Head Pressure	Lbs./ LF	Profile	Data Sheets
FR-4316	65′	.45		Spec DWG PDF

FR-6316	75′	.81		Spec DWG PDF
FR-638	125′	1.50		Spec DWG PDF
FR-638T	125′	1.30		Spec DWG PDF
FR-638RT	125′	1.70		Spec DWG PDF
FR-9316	100′	1.20		Spec DWG PDF
FR-938	175′	2.37		Spec DWG PDF
FR-938T	175′	2.07		Spec DWG PDF
Multi Rib
Catalog Number	Head Pressure	Lbs./LF	Profile	Data Sheets
MR-314	25′	.84		Spec DWG PDF
MR-412	50′	1.24		Spec DWG PDF
Split Dumbbell
Catalog#	Head Pressure	Lbs./ LF	Profile	Data Sheets
SD-638	125′	1.51		Spec DWG PDF
SD-938	150′	2.20		Spec DWG PDF

Retro Fit
Catalog#	Head Pressure	Lbs./ LF	Profile	Data Sheets
RF-4316 N/A	N/A	.89			Spec DWG PDF
RF-638	N/A	2.15		Spec DWG PDF
RF-912	N/A	4.84		Spec DWG PDF

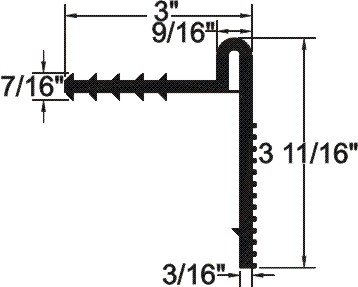

RFL-3316	N/A	.90		Spec DWG PDF
