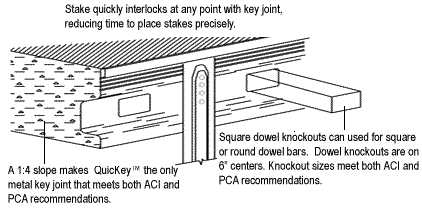

- QuicKey™ [Patent No. 6502359] is the only galvanized joint system that features knockouts for square dowels, which provide better load transfer over round dowels and also reduce edge curl on the slab.

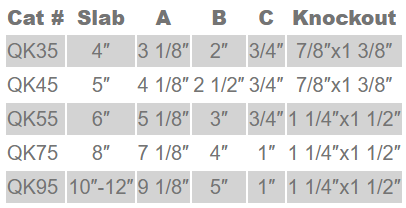

- Knockout sizes meet both ACI and PCA recommendations for the design of tongue and groove key joint.

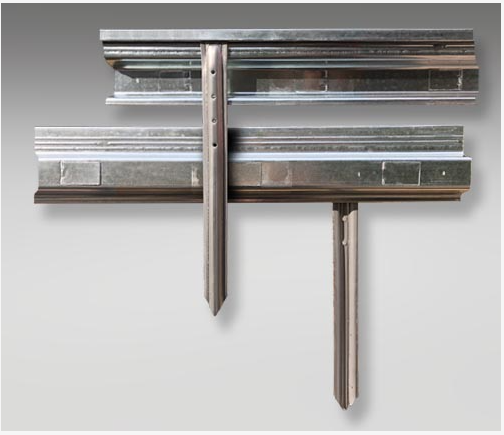

- LOCKING-TAB™ stakes provide a positive interlock between stake and key joint that eliminates floating or rising from the stake, minimizing high spots. The stake profile features a non-twist design which allows the stake to be driven at a straight angle.
- Saves on installation time, stake quickly interlocks at any point with key joint, reducing time to place stakes precisely.
- Stiffening ribs are designed for increased rigidity while installing.
- QuicKey™ removable cap yields straight void ready for sealing.
- Non-removable cap seals the joint because it stays in place.
QuicKey™ Spec Sheet
QuicKey™ Installation Guide
QuicKey™ Stake Spec Sheet
QuicKey™ Accessories
