BoMetals

TPER Waterstops

Name: TPER Waterstops
Brand: BoMetals
SKU: TPERWS
Availability: InStock

SKU: TPERWS

$0.00

Usually available for pick-up within 5 days

TPER Waterstops Data Sheets and Drawings

Dumbbell with Center Bulb
Ribbed Center Bulb
Split Ribbed
Tear Web
Base Seals
Dumbbell
Flat Ribbed
Multi Rib
Split Dumbbell
Retro Fit

DUMBBELL WITH CENTER BULB
Catalog Number	Lbs./LF	Profile	Data Sheets

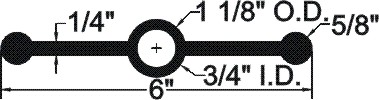

TDBCB-614	.86		Spec DWG PDF
TDBCB-638	1.16		Spec DWG PDF
TDBCB-938	2.11		Spec DWG PDF

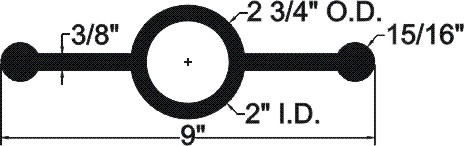

TDBCB-938L	2.41		Spec DWG PDF
RIBBED CENTER BULB

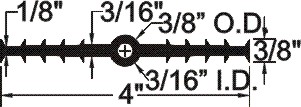

TCB-4316	0.31		Spec DWG PDF
TCB-4316CA	0.37		Spec DWG PDF

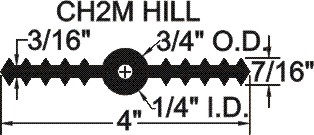

TCB-4316LB	0.43		Spec DWG PDF
TCB-4316NT	0.42		Spec DWG PDF
TCB-6316	0.45		Spec DWG PDF
TCB-6316NT	0.55		Spec DWG PDF
TCB-6316T	0.47		Spec DWG PDF

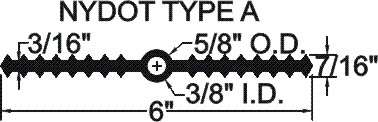

TCB-6316A	0.66		Spec DWG PDF
TCB-612	1.20		Spec DWG PDF
TCB-614	0.67		Spec DWG PDF
TCB-638	0.80		Spec DWG PDF
TCB-638BR	0.79		Spec DWG PDF

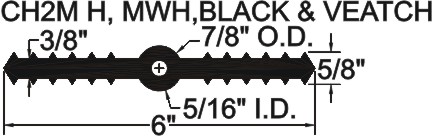

TCB-638LB	1.05		Spec DWG PDF
TCB-638NT	0.98		Spec DWG PDF
CB-714	0.99		Spec DWG PDF
TCB-9316	0.75		Spec DWG PDF
TCB-938	1.15		Spec DWG PDF
TCB-938BR	1.47		Spec DWG PDF

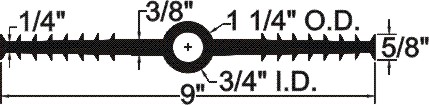

TCB-938LB	1.40		Spec DWG PDF

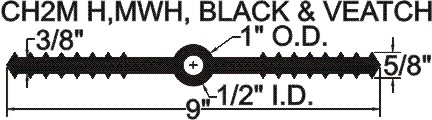

TCB-938NT	1.49		Spec DWG PDF

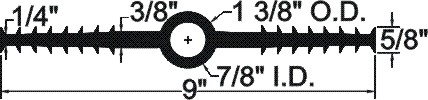

TCB-938VLB	1.51		Spec DWG PDF
TCB-1212	2.74		Spec DWG PDF

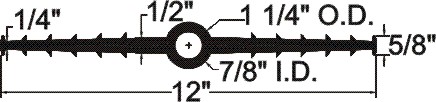

TCB-1212T	2.20		Spec DWG PDF
TCB-12316	0.98		Spec DWG PDF
Split Ribbed	Split Waterstop Installation Procedure

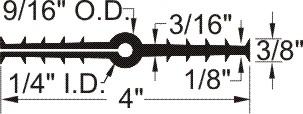

TSR-4316	0.32		Spec DWG PDF
TSR-6316	0.45		Spec DWG PDF
TSR-638	0.76		Spec DWG PDF
TSR-938	1.03		Spec DWG PDF
Tear Web
TTW-618	0.40		Spec DWG PDF
TTW-918	0.56		Spec DWG PDF
TTW-938	2.24		Spec DWG PDF
Base Seals	Base Seals Waterstop Installation Procedure
TBS-618	0.61		Spec DWG PDF
TBS-618CI	0.76		Spec DWG PDF

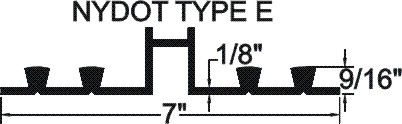

TBS-718E	0.80		Spec DWG PDF
TBS-72518	0.49		Spec DWG PDF
TBS-9316	1.07		Spec DWG PDF
TBS-9532	1.13		Spec DWG PDF

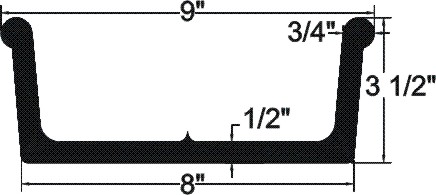

TCU-912	3.13		Spec DWG PDF
Dumbbell
TDB-4316	0.34.		Spec DWG PDF
TDB-6316	0.49		Spec DWG PDF
TDB-6316LB	0.61		Spec DWG PDF
TDB-614	0.66		Spec DWG PDF
TDB-638	1.04		Spec DWG PDF
TDB-9316	0.76		Spec DWG PDF
TDB-938	1.49		Spec DWG PDF
TDB-938LB	1.69		Spec DWG PDF
TDB-1238	1.95		Spec DWG PDF
Flat Ribbed
TFR-4316	0.33		Spec DWG PDF
TFR-6316	0.53		Spec DWG PDF
TFR-638	0.96		Spec DWG PDF
TFR-638T	0.81		Spec DWG PDF
TFR-638RT	1.03		Spec DWG PDF
TFR-9316	0.77		Spec DWG PDF
TFR-938	1.45		Spec DWG PDF
TFR-938T	1.21		Spec DWG PDF
Multi Rib	Multi Rib Waterstop Installation Procedure
TMR-314	0.60		Spec DWG PDF
TMR-412	0.84		Spec DWG PDF
Split Dumbbell	Split Waterstop Installation Procedure
TSD-638	1.04		Spec DWG PDF
TSD-938	1.35		Spec DWG PDF
Retro Fit	TPER Retro Fit Epoxy Retro Fit Waterstop Installation Guide
TRF-4316	0.58		Spec DWG PDF
TRF-638	1.32		Spec DWG PDF
TRF-912	3.34		Spec DWG PDF
TRFL-3316	0.62		Spec DWG PDF
