In the world of construction, there is more to Waterstop than just the Waterstop, you need Waterstop Accessories. Waterstop Accessories like Hog Rings and Eyelets are used to help position and stabilize waterstop during placement of concrete in conjunction with tie wire. By having BoMetals install Hog Rings or Eyelets to PVC or TPER profile, you can make the installation of the waterstop easier and faster which cuts down on labor cost.
In all projects that have Waterstop installed on it, a Welding Iron will most likely be needed. Welding Irons are used in welding PVC or TPER profiles together and are mainly used for welding two butt ends creating a watertight system.

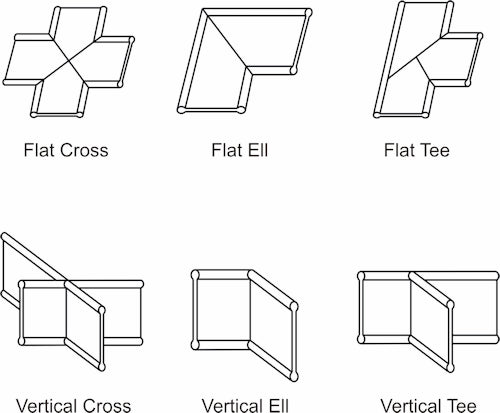

Custom Splices
An important factor in the watertightness of any waterstop system is the reliability of splices. With BoMetals custom fittings, you are guaranteed greater strength and efficiency with ease of field installation. The following factory made splices are available in PVC & TPER.
To have BoMetals make your Custom Splices, please download and fill out our approval sheet that corresponds to your needs (because these are custom items and are non-refundable) and send to your Distributor. Give us a call if you need circular, square, and irregular fittings, we are here to help make your job easier!
Waterstop Splicing Irons
BoMetals Splicing Irons are specifically designed for welding PVC & TPER Waterstop as outlined in Corp of Engineer Specification CRD C-572-74. The temperature control can be adjusted from 250º-500º Fahrenheit. BoMetals thermoplastic welding irons are constructed of the highest quality components.
- Peel & Stick Teflon Cover
- 100% Factory Tested
- Heavy Duty Vinyl Grip
- 8 Foot Grounded Cord
- Standard 110-120 VAC/8 AMP
- Adjustable Temperature
- Individually Boxed
SI-214
SI-414
Hog Rings
Suspending PVC or TPER Waterstop can be a tedious undertaking without help. That is why factory installed Hog rings are used. The factory installed Hog rings allow you to easily attach a Waterstop to your tie wire. BoMetals can install Hog rings in virtually any PVC or TPER profile.
Hog rings can also be installed manually on the job site by using Hog ring pliers. BoMetals offers 100 count boxes, 50lb boxes of Hog rings for field installation and pliers.

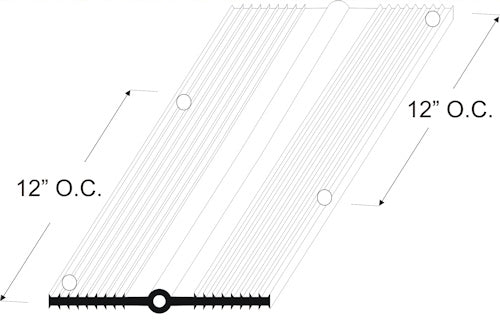

Eyelet Installation
